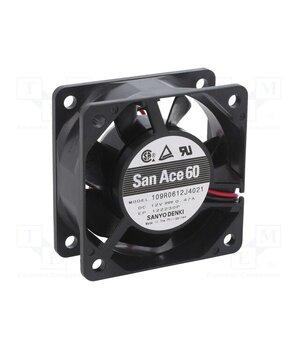

109R0612J4021 Fan: DC; 60x60x25mm; axial; 12VDC; 63.6m3/h; 44dBA; ball; 7600rpm

• Operating voltage — 10.8V…13.2V
• Operating temperature — -20°C…60°C
• Supply voltage AC — 12V AC
• Fan efficiency — 63.6m³/h
• Noise level — 44dBA
• Power consumption — 5.64W
• Supply voltage DC — 12V DC
• Operating voltage DC — 10.8V DC…13.2V DC
• Current rating — 470mA
• Lead length — 300mm
• Min. insulation resistance — 10MΩ
• —
• —
• Rotational rate/speed — 7600rpm
• Enclosure material — plastic
• —
• —
• —
• Flammability Rating — UL94V-1
• —
• —
• Kind of Bearing — ball
• —
• Fan dimensions — 60×60×25mm
• —
• Additional functions — reverse polarity protection
• Leads — leads x2
• Additional functions — lock sensor
• —
• —
• —
• —
• —
• Manufacturer — SANYO DENKI
