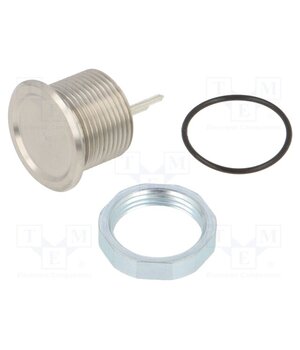

1241.2611 Switch: piezoelectric; Pos: 2; SPST-NO; 0.1A/42VAC; 0.1A/60VDC

• Contacts pitch — 5.08mm
• Operating temperature — -40°C…85°C
• Electrical life — 20Mcysles
• Operating Force — 3N
• Body material — stainless steel
• —
• Mounting hole diameter — Ø16.2mm
• Body dimensions — 20x14.2mm
• —
• Leads — for PCB
• IP rating — IP67
• —
• Switching method — OFF-(ON)
• Body colour — silver
• Manufacturer — SCHURTER
• Button shape — concave
• —
• Terminal pitch — 5.08mm
• AC contacts rating @R — 0.1A / 42V AC
• —
• DC contacts rating @R — 0.1A / 60V DC
• Contacts configuration — SPST-NO
• Stable positions number — 1
• Switch of type — piezoelectric
• —
• Mounting — through-hole technology
