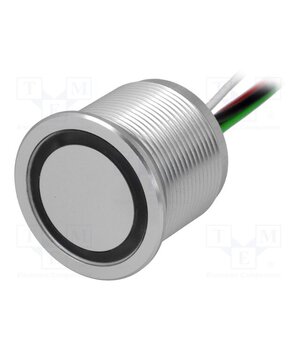

1241.3258 Switch: piezoelectric; Pos: 2; SPST-NO; 0.1A/42VAC; 0.1A/60VDC

• Operating temperature — -20°C…60°C
• Illumination voltage — 24V
• Electrical life — 20Mcysles
• Lead length — 200mm
• Operating Force — 3N
• —
• —
• —
• Leads — cables
• IP rating — IP67
• —
• Switching method — OFF-(ON)
• Backlight colour — red/green
• Body colour — silver
• Manufacturer — SCHURTER
• —
• Illumination — LED
• AC contacts rating @R — 0.1A / 42V AC
• Body material — aluminium
• —
• —
• Mounting hole diameter — Ø22mm
• Illumination — ring
• DC contacts rating @R — 0.1A / 60V DC
• Contacts configuration — SPST-NO
• Stable positions number — 1
• Switch of type — piezoelectric
• Button shape — flat
• —
