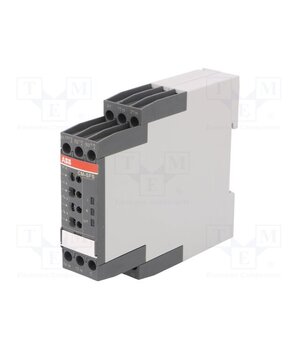

1SVR730760R0500 Current monitoring relay; AC/DC current; 24÷240VAC; 24÷240VDC

• Operating temperature — -20°C…60°C
• Supply voltage AC — 24V AC…240V AC
• Supply voltage DC — 24V DC…240V DC
• Contact actuation delay — 0s…30s
• Manufacturer — ABB
• Output 1 electrical parameters — 250V AC / 4A
• —
• Controlled parameter range — 1...5A
• Mounting — for DIN rail mounting
• Type of module — current monitoring relay
• Type of automation module — current monitoring relay
• Body dimensions — 22.5x85.6x103.7mm
• IP rating — IP20
• Kind of output 1 — DPDT
• —
• Controlled parameter range — 3...15A
• Controlled parameter range — 300mA...1.5A
• Controlled parameter — AC/DC current
• —
• —
• —
• Leads — screw terminals
• —
• —
