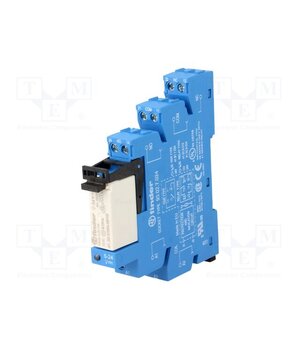

38.52.7.024.0050 Relay: interface; DPDT; Ucoil: 24VDC; 15A; 8A/250VAC; 8A/24VDC; IP20

• Operating temperature — -40°C…70°C
• Rated coil voltage DC — 24V DC
• Mechanical durability — 10Mcysles
• Operate time — 8ms
• Electrical life — 60kcysles
• —
• Relay variant — Relay set
• —
• —
• —
• —
• Mounting — for DIN rail mounting
• Type of relay — interface
• Contact material — AgNi
• Body dimensions — 89.7x14x77.1mm
• Body dimensions — 91.1x14x74.9mm
• Manufacturer — FINDER
• —
• IP rating — IP20
• Kit contents — 41.52.9.024.0010
• —
• Switched voltage — max. 220V DC
• DC contacts rating @R — 8A / 30V DC
• Contacts configuration — DPDT
• Kit contents — 93.02.7.024
• Leads — screw terminals
• DC contacts rating @R — 8A / 24V DC
• —
• Switched voltage — max. 400V AC
• Rated coil voltage — 24V DC
• —
