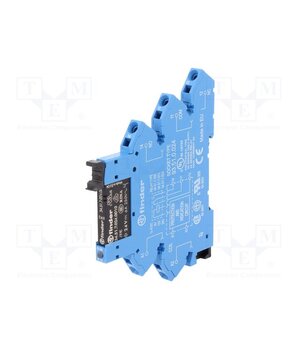

38.61.0.024.0060 Relay: interface; SPDT; Ucoil: 24VAC,24VDC; 6A; 6A/250VAC; 6A/30VDC

• Operating temperature — -40°C…70°C
• Rated coil voltage AC — 24V AC
• Rated coil voltage DC — 24V DC
• Relay variant — Relay set
• —
• DC contacts rating @R — 6A / 30V DC
• Mounting — for DIN rail mounting
• Body dimensions — 93.6x6.2x76mm
• Type of relay — interface
• Leads — spring clamps
• Manufacturer — FINDER
• Rated coil voltage — 24V AC
• IP rating — IP20
• Kit contents — 93.51.0.024
• —
• —
• Switched voltage — max. 220V DC
• —
• Contacts configuration — SPDT
• —
• Switched voltage — max. 400V AC
• Rated coil voltage — 24V DC
• Kit contents — 34.51.7.024.0010
