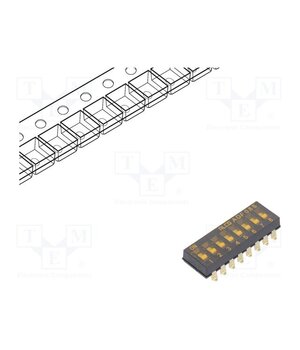

4-1825059-2 Switch: DIP-SWITCH; Poles number: 8; OFF-ON; -0.025A/24VDC; Pos: 2

• Poles number — 8
• Operating temperature — -30°C…85°C
• Max. contact resistance — 50mΩ
• Contacts pitch — 2.54mm
• Electrical life — 1kcysles
• Min. insulation resistance — 100MΩ
• Illumination — none
• Leads — for PCB
• Switch of type — DIP-switch
• Terminal pitch — 2.54mm
• —
• Mounting — SMT
• —
• Stable positions number — 2
• —
• Body colour — black
• DC contacts rating @R — 0.025A / 24V DC
• —
• Contact plating — gold-plated
• —
• Contacts configuration — SPST
• Contact material — copper alloy
• —
• Flammability Rating — UL94V-0
• Manufacturer — TE Connectivity
• —
