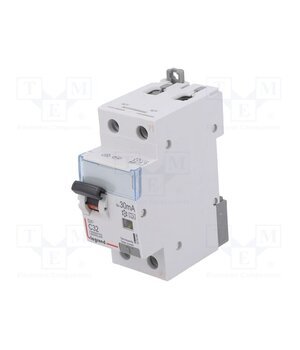

P 312C32-30-A DX RCBO breaker; Inom: 32A; Ires: 30mA; Max surge current: 250A; IP20

• Rated voltage — 400V
• Operating temperature — -25°C…60°C
• Current rating — 32A
• Rated voltage AC — 400V AC
• Residual current — 30mA
• Short circuit breaking capacity — 6kA
• Electrical life — 10kcysles
• Mechanical durability — 20kcysles
• Conform to the norm — IEC EN 61009-1
• —
• Mounting — for DIN rail mounting
• Number of poles — 2
• —
• —
• —
• IP rating — IP20
• —
• Cross section of connecting wires — 0.75...50mm2
• Characteristics — C
• —
• —
• —
• —
• Trade Name — RCBO
• Kind of circuit breaker — type A
• Manufacturer — LEGRAND
• Type of protection — RCBO breaker
