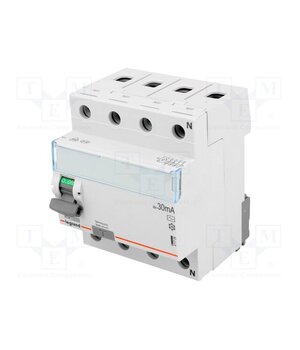

P 304 63-30-AC TX RCD breaker; Inom: 63A; Ires: 30mA; Max surge current: 250A; 400VAC

• Rated voltage — 400V
• Operating temperature — -25°C…60°C
• Current rating — 63A
• Rated voltage AC — 400V AC
• Residual current — 30mA
• Mechanical durability — 20kcysles
• Short circuit breaking capacity — 10kA
• Electrical life — 10kcysles
• Number of poles — 4
• Mounting — for DIN rail mounting
• —
• Type of protection — RCD breaker
• —
• IP rating — IP20
• —
• Cross section of connecting wires — 0.75...50mm2
• —
• —
• Conform to the norm — IEC EN 61008-1
• —
• Trade Name — RCD
• —
• —
• Kind of circuit breaker — type AC
• —
• Manufacturer — LEGRAND
