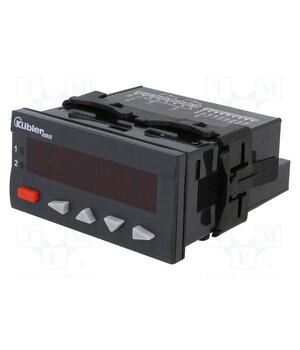

6.560.010.300 Counter: electronical; LED; pulses/speed/time; 0÷999999; SPDT

• Supply voltage AC — 10V AC…30V AC
• Operating temperature — -20°C…65°C
• Supply voltage DC — 10V DC…30V DC
• Kind of output 1 — SPDT
• Type of counted signal — pulses/speed/time
• —
• Mounting — on panel
• Kind of input 2 — PNP
• Body dimensions — 96x48x101.7mm
• —
• The additional control inputs — STOP
• Kind of output 2 — SPDT
• —
• The additional control inputs — START
• —
• Type of counter — electronical
• Kind of input 1 — NPN
• Kind of display used — LED
• —
• —
• The additional control inputs — RESET
• Display parameters — 6 digits
• Output 1 electrical parameters — 250V AC / 3A
• The additional control inputs — gate
• Mounting hole diameter — 92x45mm
• Kind of input 1 — PNP
• —
• —
• —
• Electrical connection — screw terminals
• Counting range — 0...999999
• —
• Kind of input 2 — NPN
