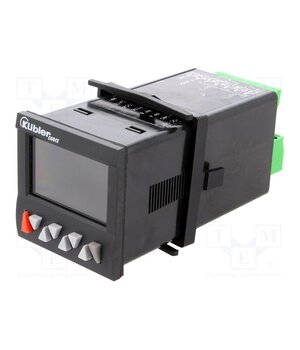

6.924.0103.300 Counter: electronical; LCD; pulses/speed/time; -999999÷999999

• Supply voltage — 10V…30V
• Operating temperature — -20°C…65°C
• Supply voltage AC — 10V AC…30V AC
• Supply voltage DC — 10V DC…30V DC
• Number of operation modes — 4
• —
• —
• —
• Counting range — -999999...999999
• Type of counted signal — pulses/speed/time
• Kind of output 1 — SPST-NO
• Mounting — on panel
• —
• Kind of input 2 — PNP
• —
• Mounting hole diameter — 45x45mm
• Kind of output 2 — SPDT
• Body dimensions — 48x48x98mm
• —
• —
• —
• —
• Type of counter — electronical
• Kind of display used — LCD
• Kind of counter — progressive/reversing
• Output 1 electrical parameters — 30V DC / 3A
• Kind of input 1 — NPN
• —
• —
• —
• The additional control inputs — RESET
• IP rating — IP65
• Output 1 electrical parameters — 250V AC / 3A
• —
• —
• The additional control inputs — gate
• Kind of input 1 — PNP
• —
• —
• —
• —
• The additional control inputs — MPI
• Electrical connection — screw terminals
• —
• —
• The additional control inputs — LOCK
• Kind of input 2 — NPN
