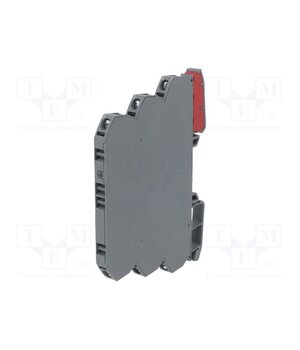

750809.0000 Converter: temperature; Usup: 24VDC; Usup: 24VAC; IN 1: Pt100; IP20

• Operating voltage — 19.2V…26.4V
• Operating temperature — -25°C…60°C
• Supply voltage AC — 24V AC
• Supply voltage DC — 24V DC
• Operating voltage DC — 18V DC…31.2V DC
• Operating voltage AC — 19.2V AC…26.4V AC
• Mounting — for DIN rail mounting
• Controlled parameter — temperature
• Protection — short circuit protection SCP
• —
• —
• —
• Kind of input 1 — Pt100
• Kind of output 1 — 0...20mA
• —
• —
• IP rating — IP20
• Kind of output 1 — 0...10V
• —
• Body dimensions — 6.2x93x73mm
• Kind of output 1 — 4...20mA
• Controlled parameter range — -50...400°C
• —
• Additional functions — LED status indicator
• Insulation voltage — 2.5kV
• —
• The programming method — DIP-SWITCH
• Leads — screw terminals
• Additional functions — inputs / outputs / power supply galvanic insulation
• —
• Protection — anti-overvoltage OVP
