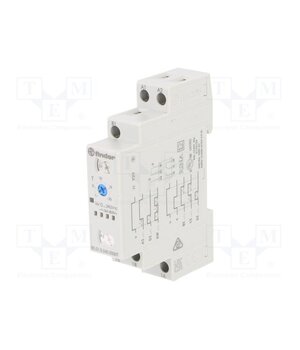

80.01.0.240.0000T Automation module: timer; 0,1s÷24h; SPDT; 12÷240VAC; 12÷240VDC; 80

• Number of pins — 6
• Supply voltage — 12V…240V
• Operating temperature — -25°C…55°C
• Supply voltage AC — 12V AC…240V AC
• Supply voltage DC — 12V DC…240V DC
• Number of operation modes — 6
• Conform to the norm — PN EN 60715
• —
• Counter operation modes — ON and OFF delay
• Kind of output — SPDT
• Counter operation modes — symmetrical cyclical operation pulse first
• Mounting — for DIN rail mounting
• —
• Conform to the norm — EN 61373
• Manufacturer — FINDER
• —
• —
• Counter operation modes — delayed switching off
• The additional control inputs — START
• Type of module — timer
• IP rating — IP20
• —
• —
• Type of automation module — timer
• Counting range — 0,1s...24h
• Application — railway industry
• Counter operation modes — delayed switching on
• Electrical connection — screw terminals
• —
• Conform to the norm — EN 45545-2 +A1:2016
• —
• Counter operation modes — with the control contact S
