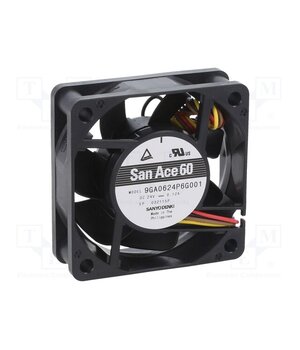

9GA0624P6G001 Fan: DC; axial; 24VDC; 60x60x20mm; 52.8m3/h; 43dBA; ball; 6850rpm

• Operating voltage — 21.6V…26.4V
• Operating temperature — -20°C…70°C
• Supply voltage AC — 24V AC
• Fan efficiency — 52.8m³/h
• Noise level — 43dBA
• Power consumption — 2.88W
• Supply voltage DC — 24V DC
• Operating voltage DC — 21.6V DC…26.4V DC
• Current rating — 120mA
• Lead length — 300mm
• Min. insulation resistance — 10MΩ
• —
• —
• Leads — leads x4
• —
• Fan dimensions — 60x60x20mm
• Enclosure material — plastic
• —
• —
• —
• Rotational rate/speed — 6850rpm
• —
• Kind of Bearing — ball
• —
• Additional functions — reverse polarity protection
• Additional functions — PWM
• Flammability Rating — UL94V-0
• Additional functions — lock sensor
• —
• —
• —
• —
• —
• —
• Manufacturer — SANYO DENKI
