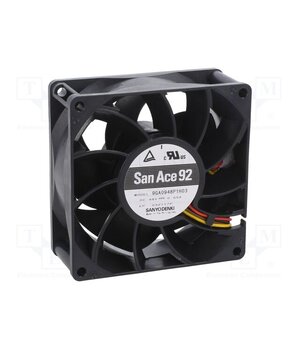

9GA0948P1H03 Fan: DC; axial; 48VDC; 92x92x38mm; 240m3/h; 63dBA; ball; 9700rpm

• Operating voltage — 55.2V
• Supply voltage — 48V
• Fan efficiency — 240m³/h
• Noise level — 63dBA
• Operating temperature — -20°C…70°C
• Supply voltage AC — 48V AC
• Power consumption — 26.4W
• Supply voltage DC — 48V DC
• Current rating — 550mA
• Operating voltage DC — 55.2V DC
• Lead length — 300mm
• Min. insulation resistance — 10MΩ
• —
• —
• Leads — leads x4
• —
• —
• Enclosure material — plastic
• —
• Fan dimensions — 92x92x38mm
• —
• —
• —
• Kind of Bearing — ball
• Additional functions — reverse polarity protection
• Additional functions — PWM
• Flammability Rating — UL94V-0
• Additional functions — lock sensor
• —
• —
• Rotational rate/speed — 9700rpm
• —
• —
• —
• —
• Manufacturer — SANYO DENKI
