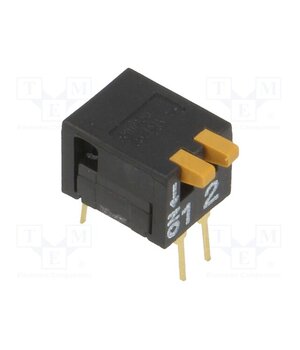

A6DR-2100 Switch: DIP-SWITCH; Poles number: 2; ON-OFF; 0.03A/30VDC; Pos: 2

• Contacts pitch — 2.54mm
• Operating temperature — -20°C…70°C
• Poles number — 2
• Electrical life — 2kcysles
• Mechanical durability — 5kcysles
• Overall length — 7.1mm
• Min. insulation resistance — 100MΩ
• Switching method — ON-OFF
• —
• Switch of type — DIP-switch
• Body dimensions — 6.6x7.62x7.1mm
• Terminal pitch — 2.54mm
• —
• —
• Switches Features — "piano" long actuator
• Contact material — beryllium copper
• Stable positions number — 2
• —
• —
• —
• DC contacts rating @R — 30mA / 30V DC
• —
• —
• —
• Manufacturer — OMRON
• Body material — PBT
• —
• Mounting — through-hole technology
