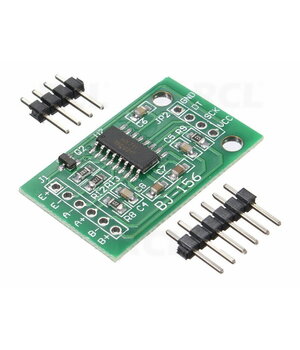

Load Cell Module HX711
Code ABA04- Weight 3.00g
E-shop price: 2,90 €
| Amount: | 4+ | 8+ |
| Price: | 2,58 | 1,97 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item is not available (0) | |
Description
⚖️ HX711 Load Cell Module
The HX711 is a precision 24-bit analog-to-digital converter (ADC) designed specifically for weighing scales and industrial control applications. It is widely used due to its simplicity, accuracy, and cost-effectiveness.
📌 Features
- 24-bit A/D converter
- Integrated amplifier (programmable gain: 32, 64, 128)
- One differential input channel (Channel A) and one pseudo-differential (Channel B)
- Low power consumption
- Compact size, easy to integrate
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 2.6 – 5.5 V |
| Current Consumption (Active) | < 1.5 mA |
| Current Consumption (Sleep) | < 1 µA |
| Resolution | 24 bits |
| Input Voltage Range | ±40 mV |
| Operating Temperature | -40 °C to +85 °C |
| Gain Options | 32, 64, 128 |
🔌 Pinout
| Pin | Description |
|---|---|
| VCC | Power Supply |
| GND | Ground |
| DT | Data Output |
| SCK | Clock Input |
🛠️ Applications
- Electronic weighing scales
- Industrial force measurement systems
- Automated packaging machines
- IoT devices requiring force or weight sensing
📦 Package Includes
- HX711 module
- 4-pin header strip

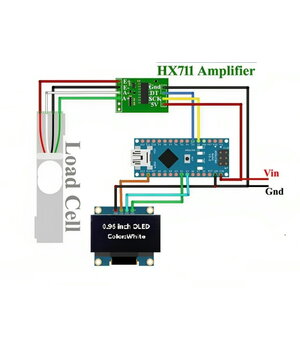

Note: To operate the HX711 module, a microcontroller (e.g., Arduino, ESP32, Raspberry Pi) is required to read the digital signal via DT and SCK lines.
