Audio amplifier class D, 500W, +/-65VDC, IRS2092S mono, with LM3886
Code ABA061- Weight 100.00g
E-shop price: 22,50 €
| Amount: | 3+ | 5+ |
| Price: | 20,92 | 20,03 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (3) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (1) | |
Description

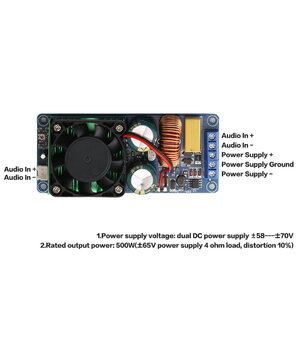

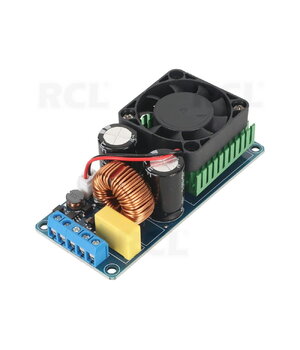

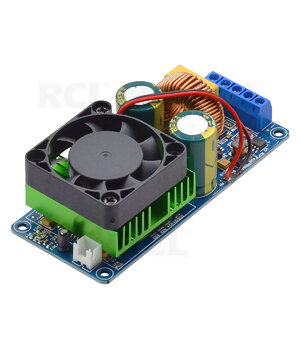

🔊 IRS2092S High Power 500W Class D HIFI Digital Audio Amplifier (Mono)
⚙️ Technical Specifications
- Model: IRS2092S
- Maximum Power Output: 500W (mono)
- Amplifier Type: Class D
- Input Voltage: DC ±50V to ±75V (recommended ±65V)
- Output Impedance: 4Ω – 8Ω
- Audio Quality: HIFI (high-fidelity audio transmission)
- Efficiency: >90%
- Protection Features:
- Over-temperature protection
- Short-circuit protection
- Overload protection
- Controller Chip: IRS2092S
- Dimensions: Approx. 120mm x 100mm x 35mm
📦 Package Includes:
- 1 x Fully Assembled Amplifier Board
🔌 Applications:
Ideal for home theater systems, high-quality audio setups, active speaker projects, or DIY audio builds.
🛠️ Note: Proper cooling (heat sinks or fans) is necessary during high power operation.
