WIFI MODULE ESP8266 ESP-12F

Code ABESP12F
  • Weight 2.00g

E-shop price: 4,90

Amount: 3+ 5+
Price: 4,36 3,51
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (9)
Shop in Vilnius Item available (4)
Shop in Kaunas Item available (3)

Item description

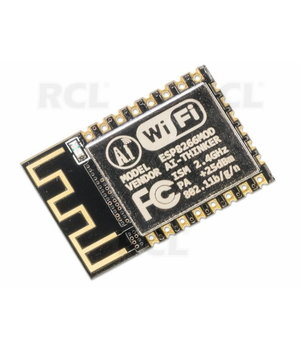

ESP-12F ESP8266 Wifi Board

Over the past year, the ESP8266 has been a growing star among IoT or WiFi-related projects. It’s an extremely cost-effective WiFi module, that – with a little extra effort – can be programmed just like any microcontroller. The ESP-12F comes with integrated antenna.

Quick Spec

Operating Voltage: 3.0-3.6V
3DBi PCB-on-board antenna
Operating Current: 80mA
Package Size 16mm24mm3mm
WiFi Protocles 802.11 b/g/n
Wi-Fi 2.4 GHz, support WPA/WPA2
Integrated low power 32-bit MCU
SPI flash, the capacity of which is 4 MB
10-bit analog ADC
Deep sleep power <10uA
