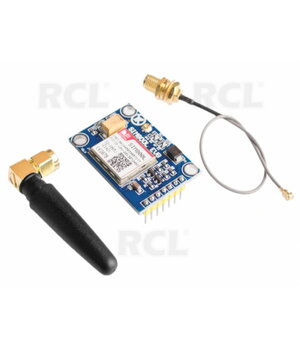

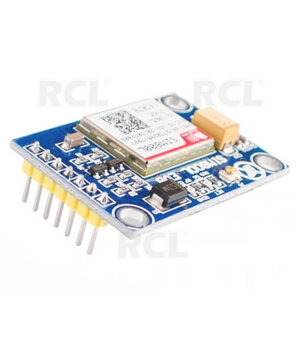

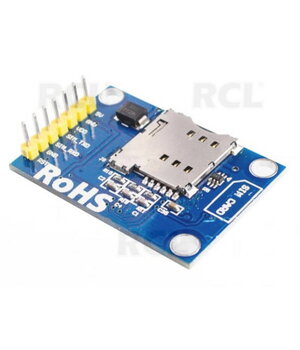

SIM800L V2.0 GPRS GSM Module
Code ABGSM39- Weight 17.00g
E-shop price: 13,90 €
| Amount: | 3+ | 5+ |
| Price: | 13,20 | 12,81 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item available (1) | |
Description
This module can be used when the Arduino project needs to communicate over GSM networks. For example to use mobile GPRS internet. Unlike SIM900A, it operates on four frequency bands and is therefore suitable for use in Europe.
Compatible with Arduino™ and *duino : Yes
Supply voltage : 4.6V - 5.2V
Frequency : 850/900/ 1800/1900 MHz
Connector pitch : 2.54mm
Connector type : Male
Number of pins : 7
Dimensions : 39 x 27 mm
Communication interfaces : Serial interface
Microprocessor ports used : 2pcs. UART (TX, RX)
Usable current : >1A
