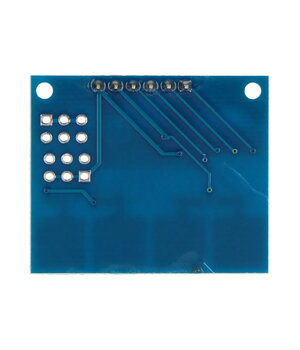

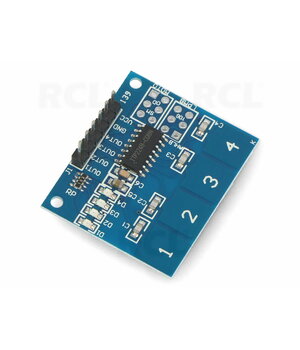

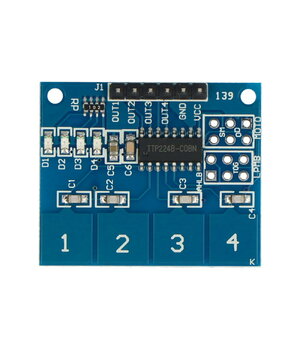

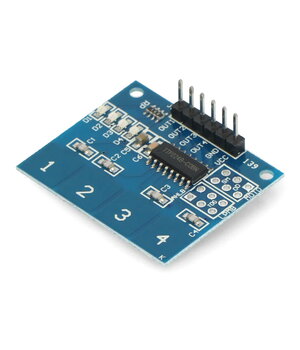

Capacitive Touch Switch Module TTP224 4-way
Code ABLT07- Weight 3.00g
E-shop price: 2,10 €
| Amount: | 4+ | 8+ |
| Price: | 1,87 | 1,46 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (3) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Description
Capacitive touch sensor module based on the TTP224 IC.
Powered from a 2.4–5.5 V DC supply rail and providing a digital output signal. The module integrates four capacitive touch keys with individual LED status indication.
Keyboard module technical specifications
- Supply voltage: 2.4–5.5 V DC
Response time:
- fast mode: approx. 100 ms
- low-power mode: approx. 200 ms
- Controller / system used: TTP224 capacitive touch controller IC
- Touch keys: 4-channel capacitive touch keyboard
- Indicators: 4 LEDs indicating the status of each key
- Operating modes: multiple configurable operating modes Link
- Dimensions: 35 × 29 × 11 mm
