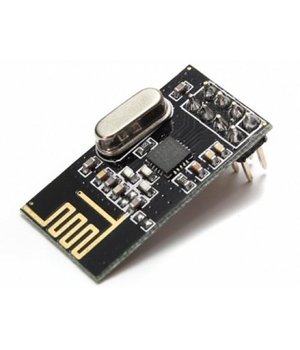

Transceiver module NRF24L01
Code ABNRF24L01- Weight 3.00g
E-shop price: 3,50 €
| Amount: | 3+ | 5+ | 10+ |
| Price: | 3,11 | 2,62 | 2,44 |
| 2,82 | 2,64 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (3) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item available (5) | |
Description
This module uses the nRF24L01 integrated circuit, which is a low cost highly integrated RF transceiver, which operates in the standard ISM band and is capable of data rates up to 2 Mbps. This module has 5V tolerant inputs, making it easy to interface the module with the most popular microcontroller boards, like Arduino.
This module is ideal for wireless peripherals, wireless remote controls, home and commercial automation, active RFID, VOIP headsets and wireless toys.
Features
Worldwide 2.4GHz ISM band operation
Up to 2Mbps on air data rate
SPI interface
Ultra low power operation
11.3mA TX at 0dBm output power
12.3mA RX at 2Mbps air data rate
900nA in power down
22μA in standby-I
On chip voltage regulator
1.9 to 3.6V supply range
Automatic packet handling
Auto packet transaction handling
5V tolerant inputs
