Lithium battery charging/discharging module with micro USB input connector 1seg., 1A ABPL01S.jpg

Lithium battery charging/discharging module with micro USB input connector 1seg., 1A

Code ABPL01S
  • Weight 2.00g

E-shop price: 1,70

Amount: 5+ 10+
Price: 1,45 0,80
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (3)
Shop in Kaunas Item is not available (0)

Description

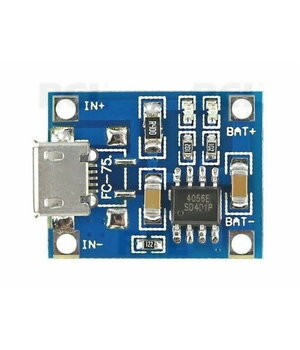

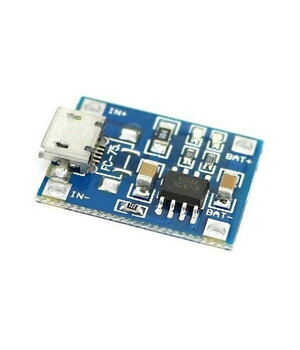

Mini battery charger module for one Li-Pol, Li-Ion (3.7 V) battery that can be built into the model (weight 1.2 g). This module is used to charge a single lithium battery or to charge several lithium batteries in parallel. The TP4056 micro-USB 5V 1A charger is used for tablets, launchers, Arduino, etc.

Cell charging information with colored LEDs: blue LED indicates charging, red LED indicates charging.

Input voltage: 4.5V ~ 5.5V
Input interface: Micro USB
Charging method: Linear
Full charging voltage: 4.2V

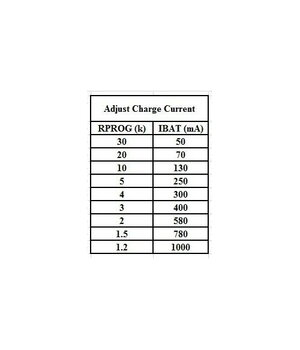

Charging Capacity: 1A (default), to adjust charging current, change the resistor according to the table below (see picture #4)
Charging accuracy: 1.5%

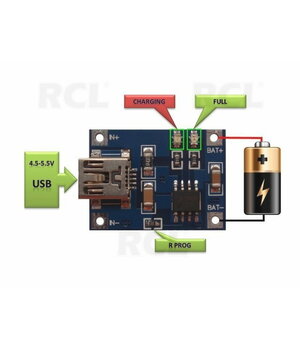

Charging indicator: blue LED - charging, red LED - charged
Dimensions: 22 x 17 mm
