Charging and protection module for lithium 18650 batteries STANDART BMS, 4S 40A
Code ABPL04/40- Weight 10.00g
E-shop price: 5,90 €
| Amount: | 3+ | 5+ |
| Price: | 5,25 | 5,06 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (7) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (2) | |
Description
The Li-Ion 4S (four cells) battery charging and protection module is a BMS electronic system (version 2.3) that protects the batteries against over-discharge and overcharging, with balancing and short-circuit function.
This allows the creation of a safe battery pack that does not need to be recharged by special lithium-ion battery chargers.
The two-in-one module has been designed to keep the battery cells in the best possible condition, preventing overcharging or over-discharging. One module replaces the charger and the protection module.
Version 2.3 includes an improved anti-interference protection function, a 30% reduction in heat generation and an increase in starting current. The balancing current is approximately 450 mW.
Features
Integrated balancer - approx. 450mW
Overload protection
Over-discharge protection
They can be used for a wide range of 3.7V lithium cells
Compact size and low weight
Ensures battery safety
Technical data:

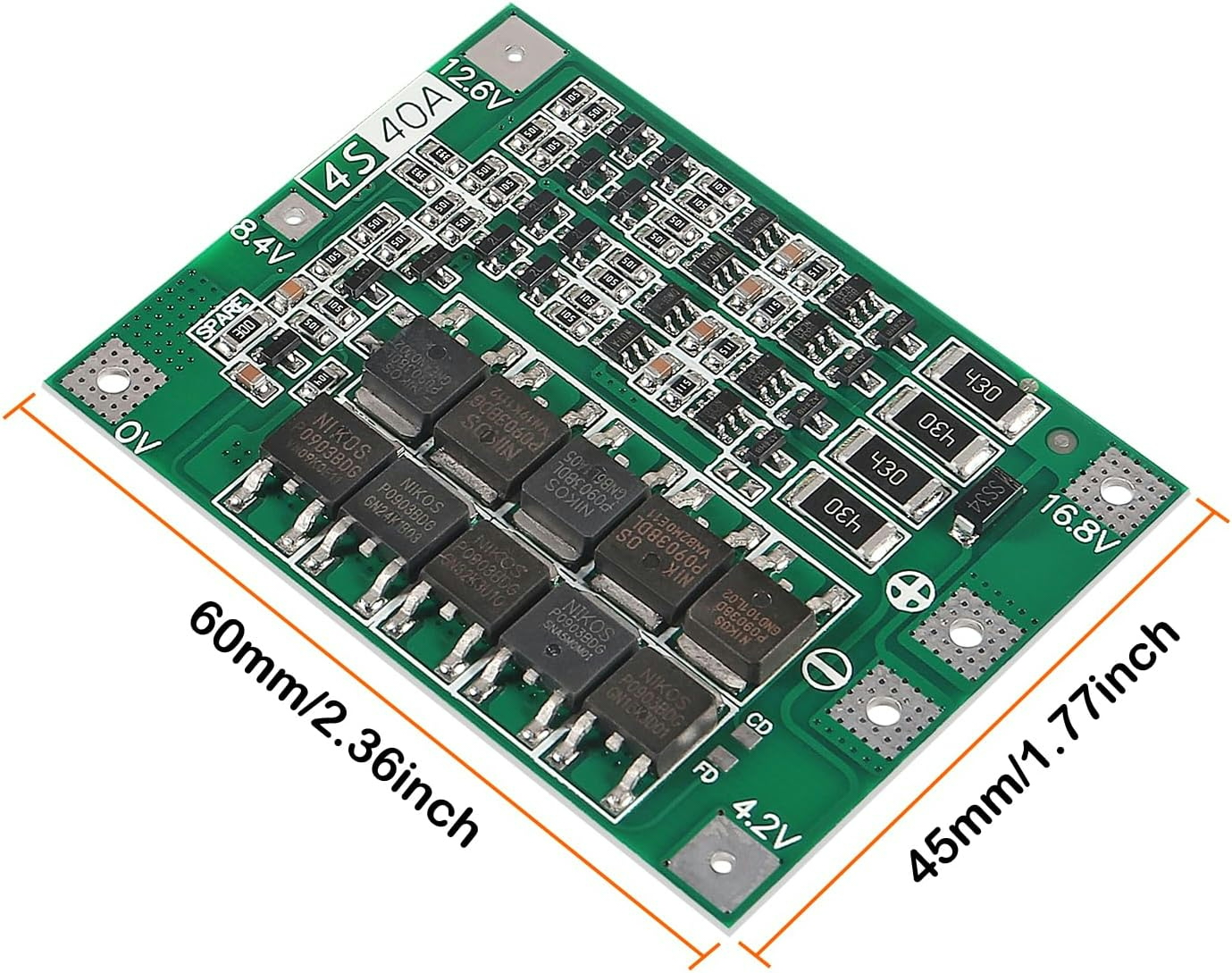

Dimensions: 60.5x45x3.5mm
Charging voltage: 16.8V - 18.1V
Continuous discharge current (upper limit): 40A
Continuous charging current (upper limit): 20A
