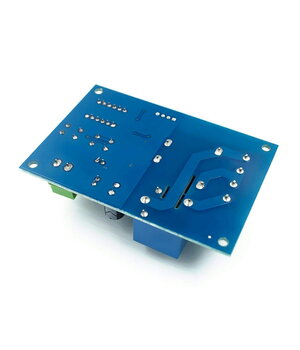

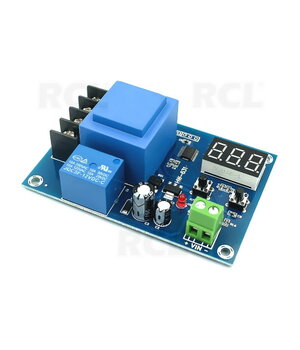

XH-M602 Lithium battery charging module, 12-96V

The XH M602 is a 230V home charger that’s able to change the charging voltage to charge a battery. The XH M602 can charge batteries such as 12V 24V 36V 48V 60V 72V 84V 96V.

Features:
• Digital display
• Monitor real-time voltage
• set value to start and stop Voltage
• Effectively protect the battery from damage due to loss of power or overcharge

Specification:
• Input voltage: AC 220V
• Display precision: 0.1V
• Control precision: 0.1V
• Output type: output switch
• Voltage error: +0.1V/-0.1V
• Application Field: 3.7V~120V lithium or storage battery
• Size: 86x58x24mm

Instructions:
In the normal state of setting the value (that is, the digital tube is flashing):
- The start button plays the role of increasing the voltage
- The stop button plays a role in reducing the voltage
To set the starting voltage:
- Under normal display voltage, press the start button to display the start charging voltage - Long press the start button to stop the digital tube from flashing, and set the start charging voltage value through the start and stop buttons.
Set the stop voltage:
- Under normal display voltage, press the stop button to display the stop charging voltage
- Press and hold the stop button to stop the digital tube from flashing, and set the stop charging voltage value through the start and stop buttons
Restore the original factory settings:
- When the power is on, press and hold the start and stop buttons at the same time, and the digital tube displays 888, that is, the original factory settings are restored successfully
