V4.0 Sensor Shield
Code ABPP07- Weight 31.00g
E-shop price: 2,90 €
| Amount: | 3+ | 5+ |
| Price: | 2,67 | 2,51 |
Minimum order: 1 Repeatability : 1
Amount
Cleanup sale, availible quantity: 3pcs.
Cleanup sale, availible quantity: 3pcs.
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (2) | |
Description
Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already.
Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.
just plug & play.
Operating Voltage: 5VDC.
Input Voltage (recommended): 7-12VDC.
Input Voltage (limits): 6-20VDC.
Buckled Analog Port : Handy, solid connection to 6 Analog inputs with VCC/GND.
Digital IO port : 13 ports prepared to digital modules or servos.
Analog IO Port:2.54 grid male pin header connections.
Buckled Communication Port : Selectable between I2C and UARt.

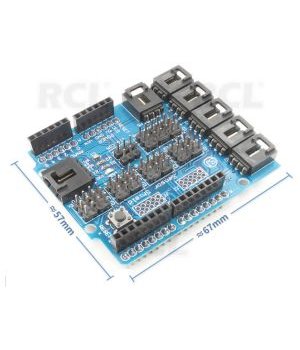

Size:7cm x 5.8cm
