Motor speed controller PWM 10-50V DC 20A, 1000W ABREG015.jpg

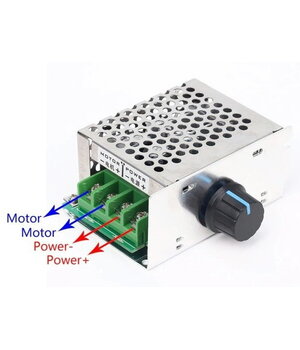

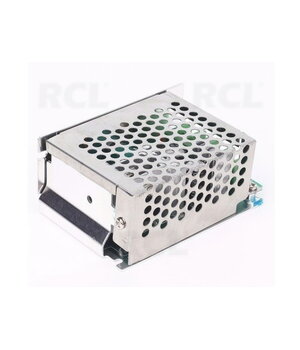

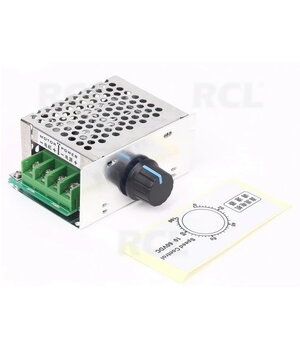

Motor speed controller PWM 10-50V DC 20A, 1000W

Code ABREG015
  • Weight 120.00g

E-shop price: 10,90

Amount: 3+ 5+
Price: 9,92 8,75
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (2)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item available (1)

Item description

DC PWM voltage regulator with an operating voltage range of 10V to 50V with a metal cover and built-in adjustment potentiometer and heat sink. You can control the rotation of the motor, charging current in battery chargers, temperature in heaters or heaters, light intensity (dimmer).

In the DC controller, control is by pulse PWM technology, so power losses are low. Adjustments are made with the potentiometer.

Product features
Infinitely adjustable motor speed, heater temperature and speed in power tools.
Terminal block connectors for screwing wires - aRK twist-on connectors
The system built on thyristor.
The controller uses an innovative bi-directional high-power SCR to regulate current up to 25A.

Technical data:
Power supply: 10-50V DC
Adjustment range: 5 - 99 %
Maximum load: 20A
Case dimensions: 85 x 58 x 38 mm
