PWM fan speed controller with temperature sensor, 12V 0.8A
Code ABREG82- Weight 15.00g
E-shop price: 5,85 €
| Amount: | 2+ | 3+ |
| Price: | 5,21 | 4,90 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (2) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Item description
The simplest production the temperature probe matched with this module is made of 1% high-precision thermistor and epoxy resin seal, which is waterproof and moisture-proof. The metal part of the probe is a temperature sensing point, and the length of the connecting wire is 50cm by default. Fix the probe on the heat source when using.
Product parameters
Operating voltage recommendation: DC12V (working within the range of 9-14V)
Input reverse connection protection
Output overload protection: none (Do not short circuit or overload!!!)
Power interface: XH-3P wiring base (pin spacing 2.54mm)
Fan current: Within 0.8A (overload is not allowed)
Temperature probe Parameters: NTC50KB=3950, length 50cm
Temperature probe connector: XH-2P wiring base (pin spacing 2.54mm)
Temperature probe Temperature resistance: ring probe 110 ℃
PWM output, range: 5%-100%
Factory default values of setting parameters:
Some fans may not turn when the output is low. Please adjust the position where the fan can be started to use the low speed of 20%, the acceleration temperature of 30 ℃, and the acceleration width of 5 ℃. Do not turn off the output.
Operating temperature:-20 ℃ to 60 ℃

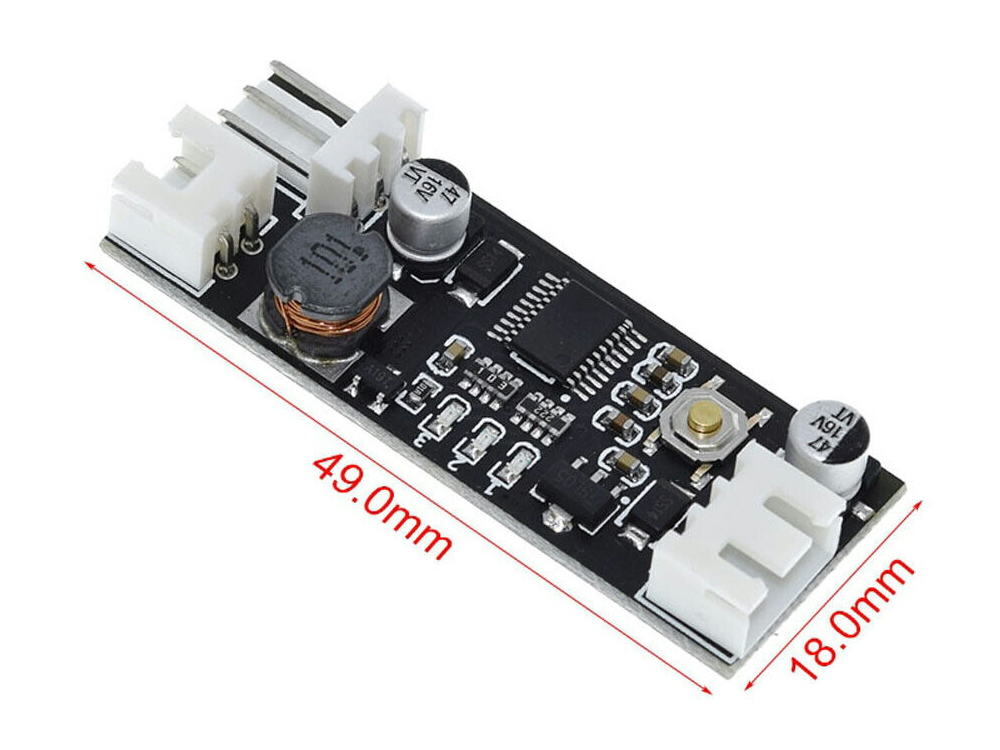

Size: 49x18x9mm(LWH)
