Arduino controller module Nano V3.0 analogue (connections not soldered)
Code ABRNANV3/A- Weight 6.00g
E-shop price: 7,70 €
| Amount: | 3+ | 5+ | 10+ |
| Price: | 6,85 | 5,23 | 4,86 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Description

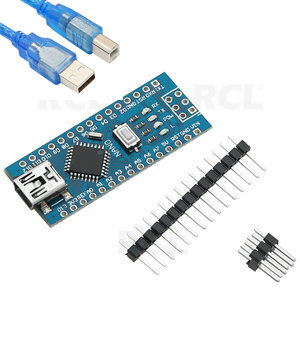

Arduino Nano - ATmega328 based prototyping board with USB-B type connector.
The board contacts are not soldered.
Features:
- Microcontroller: ATmega328.
- Architecture: AVR.
- Operating voltage: 5VDC.
- Flash memory: 32KB (2KB bootloader).
- SRAM 2KB.
- Processor frequency: 16MHz.
- Analog ports: 8.
- EEPROM 1KB.
- Current per port: 40mA.
- Input voltage: 7 - 12VDC.
- Digital ports: 22 (6 of which are PWM).
- 6 PWM outputs.
- Board dimensions: 18 x 45mm.
- Weight: 7g.
