ARDUINO MODULIS Uno R3 analogas
Code ABRUNOR3/A- Weight 45.00g
E-shop price: 10,20 €
| Amount: | 3+ | 5+ | 10+ |
| Price: | 9,18 | 8,16 | 7,65 |
| 8,72 | 8,11 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (5) | |
| Shop in Vilnius | Item available (3) | |
| Shop in Kaunas | Item available (5) | |
Item description

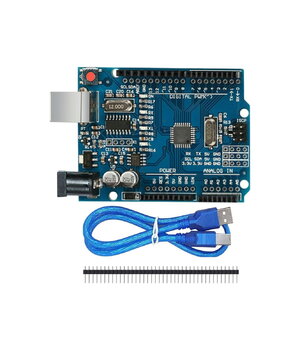

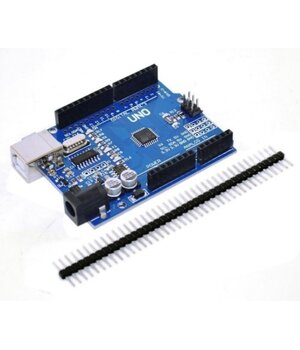

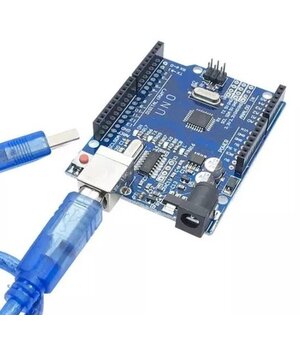

"Arduino UNO" analogue.
The UNO controller is best suited for those starting out in electronics and programming.
It is the most widely used and best documented controller in the Arduino family.
Features:
- Microcontroller: ATmega328P.
- Operating voltage: 5VDC.
- Input voltage: 7 - 12VDC.
- Input voltage range: 6 - 20VDC.
- Digital I/O channels: 14 (6 PWM).
- 6 PWM digital I/O channels.
- Analog inputs: 6.
- DC current per I/O channel: 20mA.
- DC current per 3.3V channel: 50mA.
- Flash memory 32KB (2KB for bootloader).
- SRAM 2KB (ATmega328P).
- EEPROM 1KB (ATmega328P).
- Processor speed: 16MHz.
- Built-in LED: 13 channel.
- Dimensions: 68.6 x 53.4mm.
- Weight: 25g.
