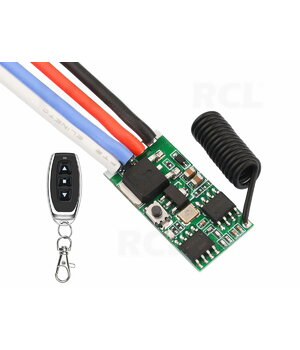

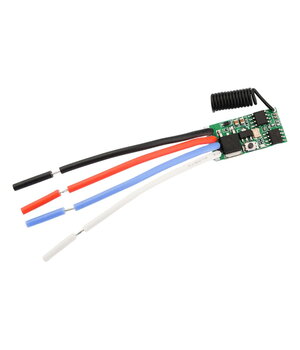

Wireless 1-channel module 5A 3.7V-24V
Code ADVM071- Weight 25.00g
E-shop price: 9,50 €
| Amount: | 3+ | 5+ |
| Price: | 8,55 | 8,09 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Description
Points:
- The product is manufactured from high-quality materials, ensuring reliable quality.
- Stable operating performance and long service life.

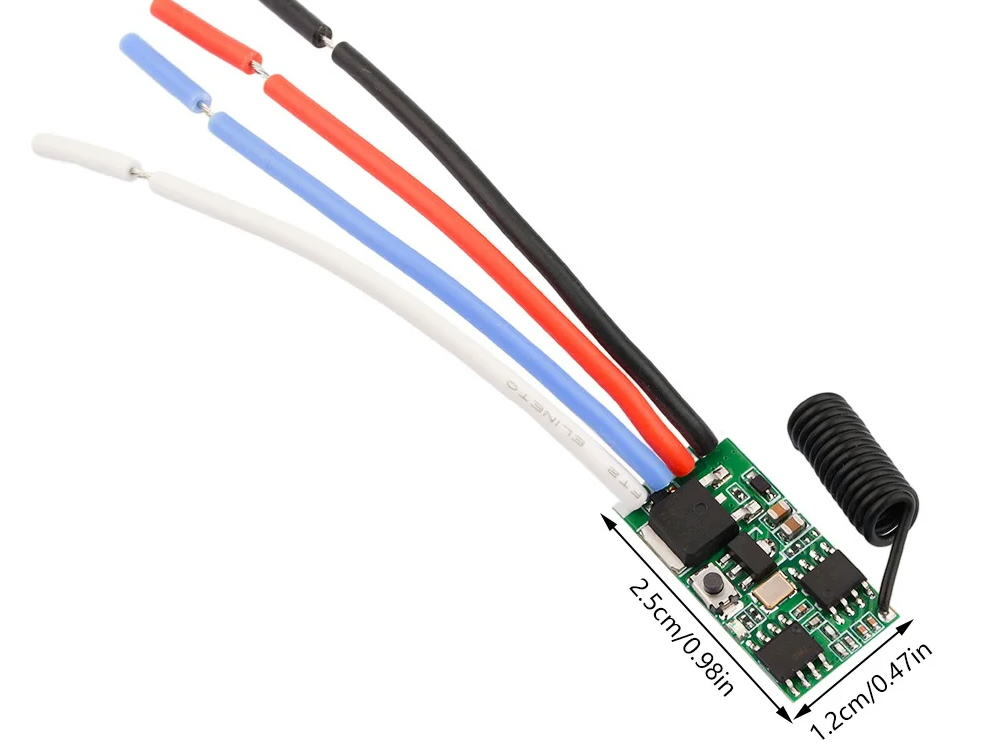

- Compact mechanical design with a two-in / two-out wiring topology; wiring is clear and straightforward.
- Wide range of application scenarios; very suitable for DIY enthusiasts.
- Maximum operating current up to 5 A; supports long-term continuous operation at 3 A.
Module parameters:
Product name: Remote PWM dimming / speed control module
Input voltage: DC 3.7–24 V
Operating current: max. 5 A, 3 A continuous
Wiring method: two inputs, two outputs
Function description:
- Pairing (learning) procedure: Press the learning button on the module once. The indicator LED will flash and then stay on. Press any key on the remote control once; after the module receives the signal, the LED will flash to indicate that pairing is successful.
- Call-on function setting: Press the learning button 8 times consecutively to enable the call-on function. Press it another 8 times to disable the call-on function. The factory default is call-on function disabled.
- Clearing learned remotes: Press the learning button 9 times to erase all remote controls stored in memory.

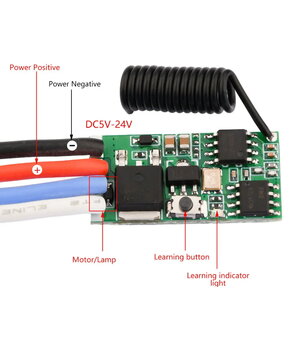

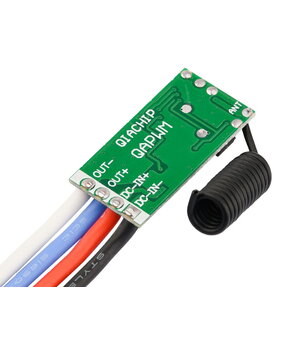

Terminal markings:
DC-IN− – connect to the negative pole of the power supply
DC-IN+ – connect to the positive pole of the power supply
OUT− – connect to the negative pole of the load
OUT+ – connect to the positive pole of the load
