USB CONVERTER <=> CAN CAN CANable Pro V2.0 CANbus AKAD017.jpg

USB CONVERTER <=> CAN CAN CANable Pro V2.0 CANbus

Code AKAD017
  • Weight 40.00g

E-shop price: 19,50

Amount: 3+ 6+
Price: 18,13 17,67
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item is not available (0)

Item description

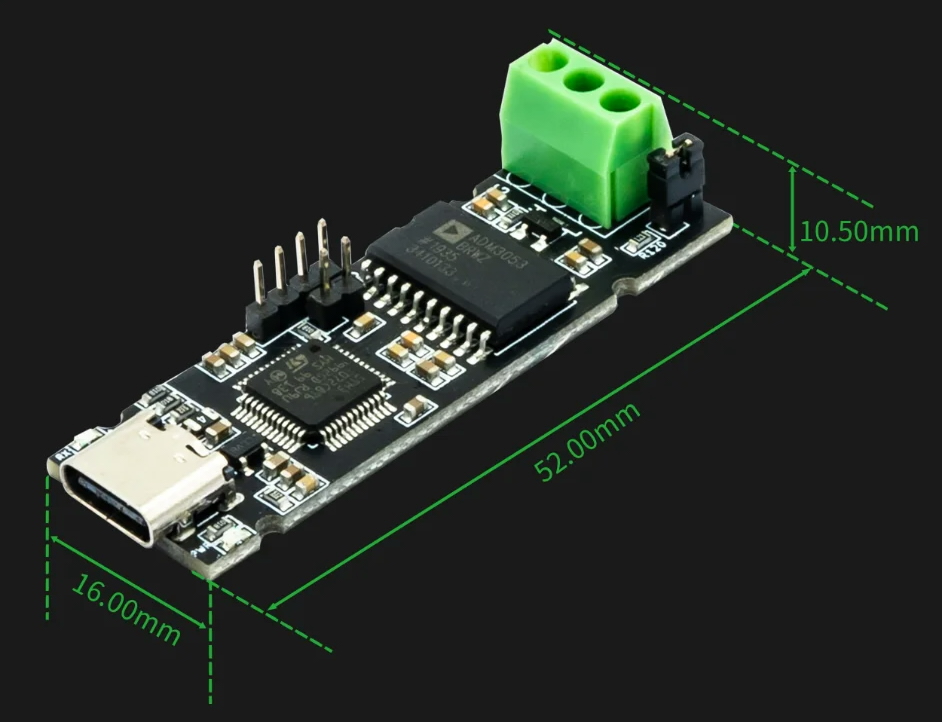

Drawing

The CANable 2.0 is a small low-cost open source USB to CAN adapter. The CANable enumerates as a virtual serial port on your computer and acts as a serial-line to CAN bus interface. With the alternative candleLight firmware, the CANable enumerates as a native CAN interface on Linux. CANable 2.0 supports both standard CAN and CAN-FD.

CANable adapters are compatible with ARM-based embedded platforms such as the Raspberry Pi, Raspberry Pi Zero, ODROID, BeagleBone, etc. and are well suited for integration into OEM products.

CANable Pro
All features of the standard CANable
2.5kV galvanic isolation between USB and CAN bus
Additional ESD protection/clamping on CAN bus
Additional ESD protection/clamping on USB
Breakaway mounting holes
Button to enter bootloader for firmware updates
