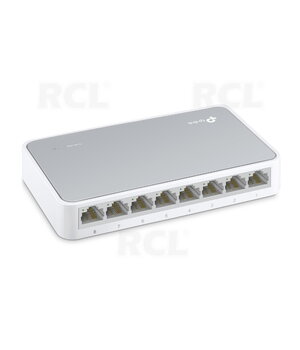

Computer Network Switch TL-SF1008D, 8 ports, 10/100 Mbps

What This Product Does

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-LINK Green Technology

This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Produkto specifikacijos:

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Buffer Size 2Mb
External Power Supply 100-240VAC, 50/60Hz
Fan Quantity Fanless
Data Rates 10/100Mbps at Half Duplex ; 20/200Mbps at Full Duplex
LED Indicator Power, 1, 2, 3, 4, 5, 6, 7, 8
Dimensions ( W x D x H ) 134.57922.5mm
Power Consumption Maximum: 2.2W (220V/50Hz)
Power Supply External Power Adapter(Output: 5.0VDC / 0.6A)
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions Green Technology, saving power up to 60%
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port

Certification FCC, CE, RoHS
Package Contents: 8-Port 10/100Mbps Desktop Switch; Power Adapter; User Guide
System Requirements Microsoft® Windows®, XP, Vista or Windows 7, Windows 8, Mac® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
