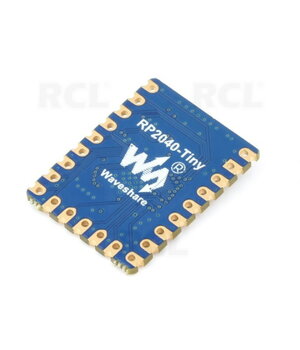

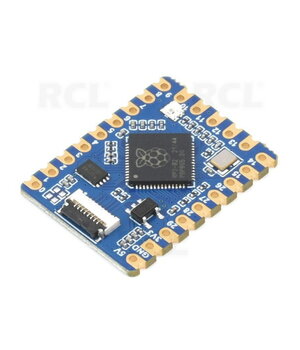

Waveshare RP2040-Tiny Development Board
Code AKOMRP2040- Weight 4.00g
E-shop price: 13,20 €
| Amount: | 3+ | 6+ |
| Price: | 12,01 | 10,55 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Description
RP2040 microcontroller chip designed by Raspberry Pi
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
20 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support
