Raspberry PI Pico RP2040 ARM Cortex M0+
Code AKOMRPIPI- Weight 5.00g
E-shop price: 7,90 €
| Amount: | 3+ | 5+ |
| Price: | 7,43 | 7,19 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (4) | |
| Shop in Vilnius | Item available (3) | |
| Shop in Kaunas | Item available (3) | |
Item description

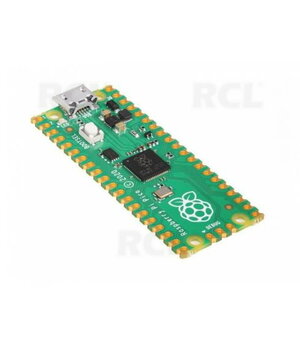

Raspberry Pi Pico- RP2040 ARM Cortex M0+ The Raspberry Pi Pico is a low-cost, high-performance microcontroller board with digital interfaces. It provides microcontroller functionality only and can be programmed in MicroPython or C++ programming languages. It can be programmed via USB using a Raspberry Pi board or PC.
At the heart of the Raspberry Pi Pico is the RP2040, a chip developed by Raspberry Pi that contains two 133MHz ARM Cortex-M0+ cores; 256KB of RAM; 40 GPIO pins; and a range of interface options. It also has 2MB of internal QSPI Flash memory for storing codes and data.
Specification:
System: Raspberry Pi RP2040;
Core: ARM Cortex-M0 + dual-core 133 MHz;
SRAM: 264 kB memory;
Flash memory: 2 MB;
40 pins / 23 digital GPIO + 3 ADC pins;
Interfaces: 2x UART, 2x I2C, 2x SPI, 3x12-bit ADC, up to 16 PWM channels;
Power supply voltage: 5 V (USB);
Sensor: thermal;
Logic operating voltage: 3.3 V;
Power/data connector: microUSB;
Size: 51.3x21x3.9 mm.
