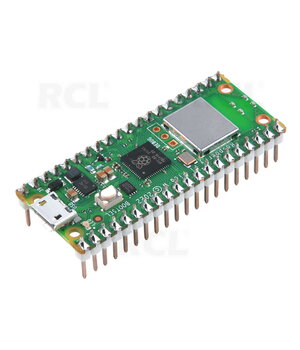

Computer module Raspberry PI Pico WH
Code AKOMRPIPIWH- Weight 7.00g
E-shop price: 12,90 €
| Amount: | 3+ | 5+ |
| Price: | 12,25 | 11,86 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Item description
The Pico WH maintains the power and flexibility of the previous model, adding both wireless connectivity and pre-populated headers for greater integration into IoT applications. WiFi support is enabled via the integrated Infineon CYW43439 chip and contained in a metal shield can to reduce compliance costs. The Pico features flexible digital interfaces and can be easily programmed over USB using C/C++ or MicroPython, thanks to a comprehensive SDK with software examples and full documentation.
Raspberry Pi designed RP2040 chipset
Dual core ARM Cortex M0+ processor at up to 133MHz with variable core frequency
Integrated Infineon CYW43439 chip with WPA3 and SoftAP (up to 4 clients)
Supports 2.4GHz 802.11b/g/n wireless LAN connections
264kB SRAM & 2MB onboard flash memory
26 Multifunction GPIO pins (23x digital only, 3x ADC capable)
2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC and 16x controllable PWM channels
Accurate clock and timer on chip
Temperature sensor
Accelerated floating point libraries
Micro USB port for power & data
3-pin JST-SH debug header
Pre-soldered headers
