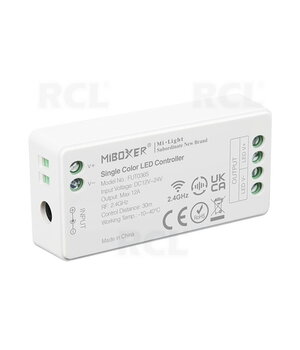

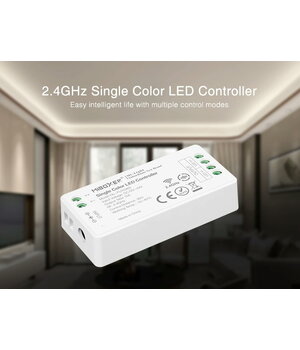

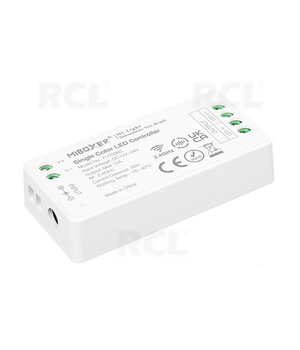

Monochrome LED controller MIBOXER FUT036S, RF 2.4GHz, 12-24VDC 12A
Code ALEDVL16- ID code FUT036S
- Weight 35.00g
E-shop price: 11,50 €
| Amount: | 3+ | 5+ |
| Price: | 10,46 | 9,85 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Item description
Controller MONO 12-24V DC 12A MiBoxer FUT036S is a small device for controlling lighting with a single colour LED. The device is designed to change the brightness of the connected monochrome LED strip using a suitable dimmer. The connectivity of this device is made by radio, through which the receiver communicates with the transmitter. This receiver is compatible with the MiBoxer series.
The MiBoxer series are characterised by wireless radio communication with a remote control or a wall panel. The range of this connection is 30 meters in the open area, provided it is not exposed to various types of interference. The receiver units are supplied with a DC voltage of 12VDC or 24VDC, which must be connected to the input of the device.
Application: For MONO (single colour) installation
Maximum output current: 12A
Input/Output Voltage: 12V DC or 24V DC
Number of outputs: 1 channel (V+/V-) - common anode

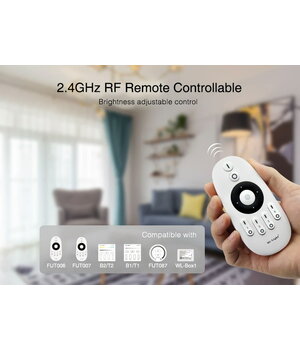

Controlling method: Radio
Controlling range: up to 30 meters in an open area
Control frequency: 2.4GHz
Working temperature: -10 – 40℃
Compatible devices: please see the compatible MiBoxer products tab
Return to previous settings after powering off: Yes

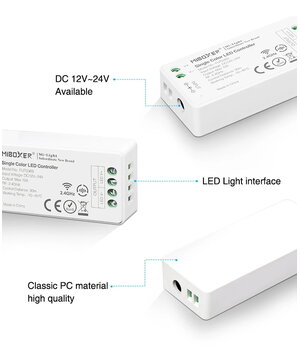

Input connector (power supply): Screw terminals for bare wires and DC socket
Output connector (signal): Screw terminals for bare wires
Dimensions[mm]: L74.5 x W36 x H17
