Suppression filter ~230V 6A
Code AMFT06- Weight 32.00g
E-shop price: 9,95 €
| Amount: | 3+ | 5+ |
| Price: | 9,35 | 8,73 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Description
Filter type anti-interference
Operating voltage 250V AC
Inductance of individual winding 0.7mH
Capacitance Cx 100nF
Capacitance Cy 3.3nF
Operating current max. 6A
Leads 6.3x0.8mm connectors
Operating temperature -25...85°C
Leakage current 0.8mA
Filter series FYK

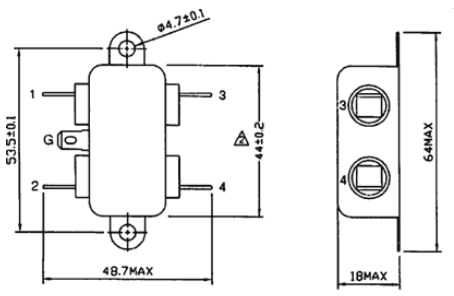

Panel cutout diameter 4.7mm
Mounting holes pitch 53.5mm
Min. insulation resistance 100M?
AC test voltage 1.8kV
