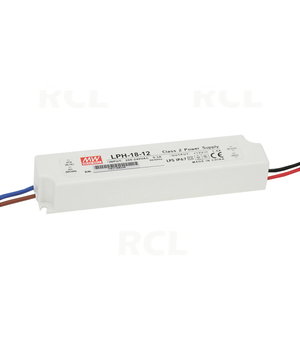

POWER SUPPLY LED 12V 1.5A 18W LPH-18-12
Code AMLED1215- Manufacturer MEAN WELL
- ID code LPH-18-12
- Weight 239.00g
E-shop price: 8,70 €
| Amount: | 3+ | 5+ |
| Price: | 8,00 | 7,78 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (3) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item available (3) | |
Description
Input Voltage 180 ~ 264Vac
Input Frequency 47 ~ 63Hz
Input Current 0.3A/230Vac
Inrush Current 50A/230Vac cold start
Leakage Current 0.25mA/240Vac
Voltage Tolerance ±3.0%
Line Regulation ±1.0%
Load Regulation ±2.0%
Set Up, Rise Time 1500ms, 30ms/230Vac
Hold Time 50ms/230Vac at full load
Over Current Protection Above 105% rated output power
Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection Shut off o/p voltage, clamping by zener diode
Working Temperature -30°C ~ +70°C (Refer to output derating curve)
Working Humidity 20 ~ 90% RH non-condensing
Storage Temperature, Humidity -40°C ~ +80°C, 10 ~ 95% RH
Temperature Coefficient ±0.03%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min./1 cycle, period for 60 min. each along X, Y, Z axes
Withstand Voltage I/P-O/P:3KVAC
Isolation Resistance I/P
