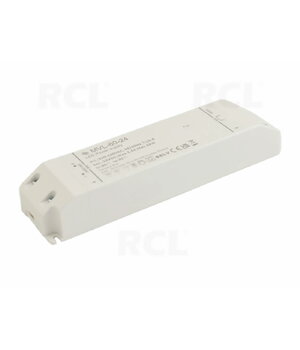

FOSE MVL-60-24 constant-voltage LED power supply, 24 V DC, 60 W, 2.5 A, PFC

Amount:	3+	5+
Price:	9,40	8,88

Item location:
Central warehouse in Kaunas		Item available (1)
Shop in Vilnius		Item is not available (0)
Shop in Kaunas		Item is not available (0)

FOSE MVL-60-24 is a switching constant-voltage power supply intended for 24 V DC LED systems. It provides up to 60 W output power and 2.5 A output current and incorporates PFC together with short-circuit, overload and over-temperature protection. The IP20 enclosure is intended for indoor installation, while cooling is provided by free air convection.

Key specifications:
24 V DC • 60 W • 2.5 A • 200–240 V AC • PF >0.95 • IP20 • Class II

Key features and benefits

Constant 24 V DC output – designed for constant-voltage 24 V LED systems.
60 W output power – supports compatible 24 V DC loads up to 60 W, provided the 2.5 A maximum output current is not exceeded.
PFC, PF >0.95 – the manufacturer specifies a power factor greater than 0.95 for improved utilisation of the AC supply.
87% efficiency – most of the input power is transferred to the connected load.
Integrated protection functions – protection against short circuit, overload and excessive temperature.
Free-air convection cooling – no active cooling fan is required.
IP20 degree of protection – intended for installation in dry indoor environments.
Protection Class II – classified by the manufacturer as Class II electrical equipment.
100% full-load burn-in test – the manufacturer states that the power supply undergoes a full-load burn-in test.
5-year warranty – manufacturer-specified warranty period.

Applications

The MVL-60-24 is intended for constant-voltage 24 V LED lighting systems with a total load not exceeding 60 W and 2.5 A. Typical applications include compatible 24 V LED strips, LED modules and other constant-voltage LED loads.

Due to its IP20 rating, the unit is intended for indoor installations and is not specified for outdoor exposure.

Compatibility and limitations

Supply voltage: 200–240 V AC, 50/60 Hz.
Output: 24 V DC constant voltage.
Maximum output current: 2.5 A.
Maximum output power: 60 W.
Intended for 24 V constant-voltage LED loads.
IP20 – the manufacturer specifies that the unit is not suitable for outdoor use.
Free airflow must be available because cooling is based on natural air convection.
The manufacturer does not specify DALI, 0–10 V, PWM, TRIAC or another external dimming interface for this model.

Technical specifications

Parameter	Value
Model	FOSE MVL-60-24
Power supply type	Switching, constant voltage
Application	LED power supply
Rated supply voltage	200–240 V AC
Mains frequency	50/60 Hz
Output voltage	24 V DC
Maximum output current	2.5 A
Output power	60 W
Number of outputs	1
Efficiency	87%
Power factor	>0.95
PFC	Yes
Short-circuit protection	Yes
Overload protection	Yes
Over-temperature protection	Yes
Cooling	Free-air convection
Degree of protection	IP20
Protection class	II
Housing	Plastic
Electrical connection	Screw terminals
Suitable for outdoor use	No
Dimensions	170 × 45 × 28 mm
Weight	0.22 kg
Full-load burn-in test	100% full-load burn-in test
Warranty	5 years

Construction and connection

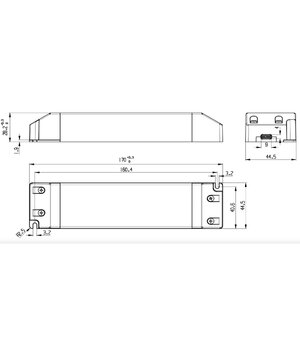

The MVL-60-24 is housed in a compact plastic enclosure measuring 170 × 45 × 28 mm. Mains and load wiring is connected through screw terminals. No active cooling fan is used; heat is dissipated by natural air convection.

Important operating and safety notes

The power supply is intended for indoor use; its IP20 enclosure is not designed for outdoor conditions.
The connected load must not exceed 60 W or 2.5 A.
The input supply must be within 200–240 V AC, 50/60 Hz.
Installation conditions should allow unrestricted natural air convection.
Short-circuit, overload and over-temperature protections are incorporated, but they do not replace correct power-supply sizing for the connected load.

Package contents

The manufacturer does not specify separate package contents for this model.
