DC-DC 12A 200W Adjustable Power Supply Module, Uin:4.5-32V Uout:0.8-30V Iout:0-12A(max)
Code AMM03- Weight 95.00g
E-shop price: 12,90 €
| Amount: | 5+ | 10+ |
| Price: | 11,61 | 11,31 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Item description

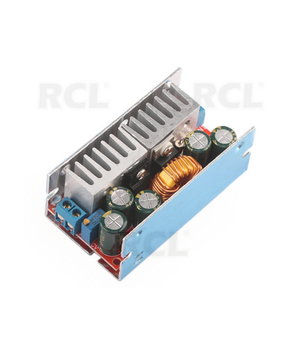

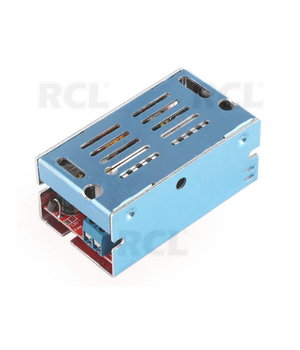

Voltage step-down converter with adjustable voltage.
Features:
- Type: Buck.
- Dimensions: 70mm x 39mm x 31mm.
- Input voltage: 4.5 - 32V.
- Output voltage: 0.8 - 30VDC (adjustable).
- Output current: 0 - 12A.
- Output power: 200W (heat dissipation should be increased above 100W).
- Operating frequency: 300KHz.
- Conversion efficiency: up to 95%.
- Operating temperature: -40 to +85C.
- Short-circuit protection: available.
- Overheating protection: available.
- Reverse polarity protection: available.
- Installation: clamps.

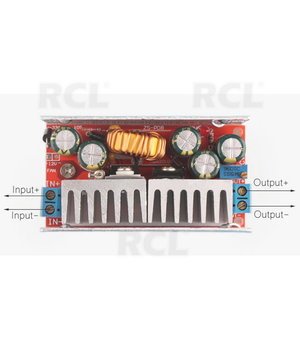

- IN+: positive input.
- IN-: input negative.
- OUT +: output positive.
- OUT-: output negative.
- Colour: silver (blue is a protective film to be removed).
