CONVERTER step-up 7A 200W shielded Uin:7-35V Uout:7-55V Iout:0-10A(max)
Code AMM05- Weight 65.00g
E-shop price: 12,90 €
| Amount: | 5+ | 10+ |
| Price: | 11,61 | 10,87 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (2) | |
Item description

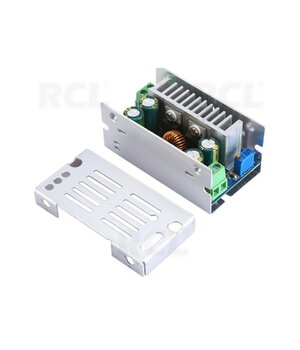

Step-UP converter with an input voltage of DC 7-35V.
The output voltage is: DC 7-55V. (Only the output voltage is greater than or equal to the input voltage)
Conversion efficiency: 97.6% (when measured, input 32V, output 45V / 3A)
Maximum input power: 200W (30V when the input voltage is greater than the maximum power)
Maximum input current: 10A (when working for a longer time, please leave some margin)
Maximum output current: 7A (when working for a longer time, please leave some margin)
Module dimensions: 70 x 39 x 32 mm (length x width x height)
NOTE: Potentiometers have a wide scale of approx. 50 turns
