POWER SUPPLY MDR-60-24 24V/2.5A AMMB060XX_M.jpg

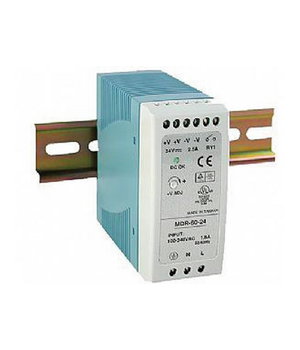

POWER SUPPLY MDR-60-24 24V/2.5A

Code AMMB06024/M
  • Manufacturer MEAN WELL
  • Weight 295.00g

E-shop price: 24,90

Amount: 3+ 5+
Price: 23,91 23,58
Minimum order: 1 Repeatability : 1

Amount

Cleanup sale, availible quantity: 0pcs.
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item is not available (0)

Item description

Drawing Datasheet

Mean Well MDR-60 series industrial DIN power supply that is easily mounted on a DIN rail.

Features:

Universal AC input
Easily mounted on DIN rail TS-35/7.5 or 15
Clas 1, Div 2 hazardous locations T4
Short circuit, overvoltage, overload protection
DC OK relay contact
Tested at 100% load
Low power consumption < 0.75W
LED indicator (power on)

Technical specification:

Voltage range AC, DC: 85~264VAC 120~370VDC
Output voltage range: 24~30V
Operating temperature range: -20℃ ... +70℃
Dimensions: 40x190x100mm.

Specification
