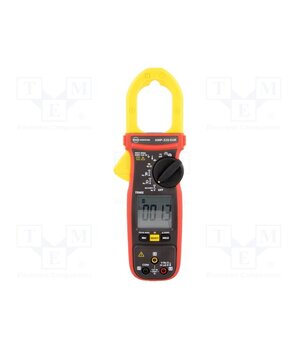

AMP-320-EUR Meter: multifunction; digital,AC/DC pincers type; Øcable: 35mm

• Temperature measuring range — -40°C…400°C
• Capacitance measuring range — 0F…2.5mF
• DC voltage measuring range — 0V DC…150V DC
• AC current measuring range — 0A…600A
• DC current measuring range — 0A…600A
• AC voltage measuring range — 0V AC…600V AC
• Resistance measuring range — 0Ω…60kΩ
• Max. diameter of measured cable — 35mm
• —
• —
• Standard equipment — case
• Measurement — temperature
• Frequency measuring range — 5...999.9Hz
• —
• Measurement — capacitance
• Measurement — frequency
• —
• —
• —
• Measurement — inrush current
• Conform to the norm — CAT III 600V
• Measurement — DC current
• Standard equipment — test leads
• Measurement — AC voltage
• —
• Manufacturer — BEHA-AMPROBE
• True effective value measurement — True RMS
• Measuring instrument features — MIN/MAX/MEDIUM function
• Kind of display used — LCD
• Body dimensions — 224x77x37mm
• Standard equipment — user's manual
• Measurement — resistance
• —
• —
• —
• —
• —
• —
• Test — diodes
• Measuring instrument features — HOLD function
• Measuring instrument features — contactless voltage detector
• —
• —
• Measuring instrument features — automatic power-off
• Conform to the norm — EN 61010
• Standard equipment — drop-like K-type probe
• —
• —
• Kind of meter — pincers type
• Measuring instrument features — low-pass filter for measuring drive parameters
• Kind of meter — digital
• —
• Type of meter — multifunction
• Illumination — yes
• Continuity test — acoustic indication
• Display parameters — (6000)
• Measurement — AC current
• —
• Measurement — DC voltage
• —
