POWER SUPPLY AC 230V=>DC 5V 4A, 20W  DC, 2.1x5.5x11-S, SYS1588-2005-T2 AMS0540_E.jpg

POWER SUPPLY AC 230V=>DC 5V 4A, 20W DC, 2.1x5.5x11-S, SYS1588-2005-T2

Code AMS0540/E
  • Manufacturer SUNNY
  • ID code SYS1588-2005-T2 (2.1x5.5x11-S)
  • Weight 190.00g

E-shop price: 16,90

Amount: 2+ 3+
Price: 15,38 14,48
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (1)
Shop in Vilnius Item available (2)
Shop in Kaunas Item available (2)

Description

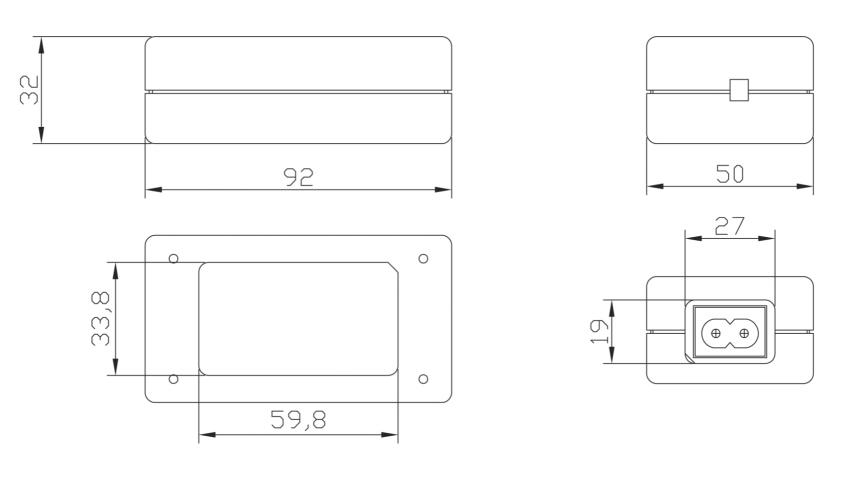

Drawing Datasheet User's manual

🔌 Power Supply SYS1588-2005-T2 (2.1x5.5x11-S)

Manufacturer: SUNNY
Model: SYS1588-2005-T2
EAN: 8594213821108

⚙️ Technical Specifications

  • Input Voltage: 90–264 V AC
  • Output Voltage: 5.1 V DC
  • Maximum Current: 4 A
  • Power: 20.4 W
  • Efficiency Level: VI
  • Output Connector: 2.1 × 5.5 × 11 mm (positive inner pin)
  • Input Connector: IEC C8 ("∞" type)
  • Cable Length: 1.5 m
  • Dimensions: 93 × 50 × 33 mm
  • Weight: 187 g

🔒 Protection Features

  • OCP: Overcurrent Protection
  • OVP: Overvoltage Protection
  • SCP: Short Circuit Protection
  • OTP: Over Temperature Protection
  • BOP: Brown-Out Protection

✅ Certifications and Compliance

  • RoHS and REACH compliant
  • Ecodesign (EU) 2019/1782
  • ISO 9001:2015

Specification
