RFID IC/ID copy and read device for 125 kHz - 13.56 MHz cards with LCD 3.2" display (card/key/fob kit included) AP181.jpg

RFID IC/ID copy and read device for 125 kHz - 13.56 MHz cards with LCD 3.2" display (card/key/fob kit included)

Code AP181
  • Weight 270.00g

E-shop price: 64,30

Amount: 3+ 5+
Price: 61,09 57,57
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (2)
Shop in Kaunas Item is not available (0)

Description

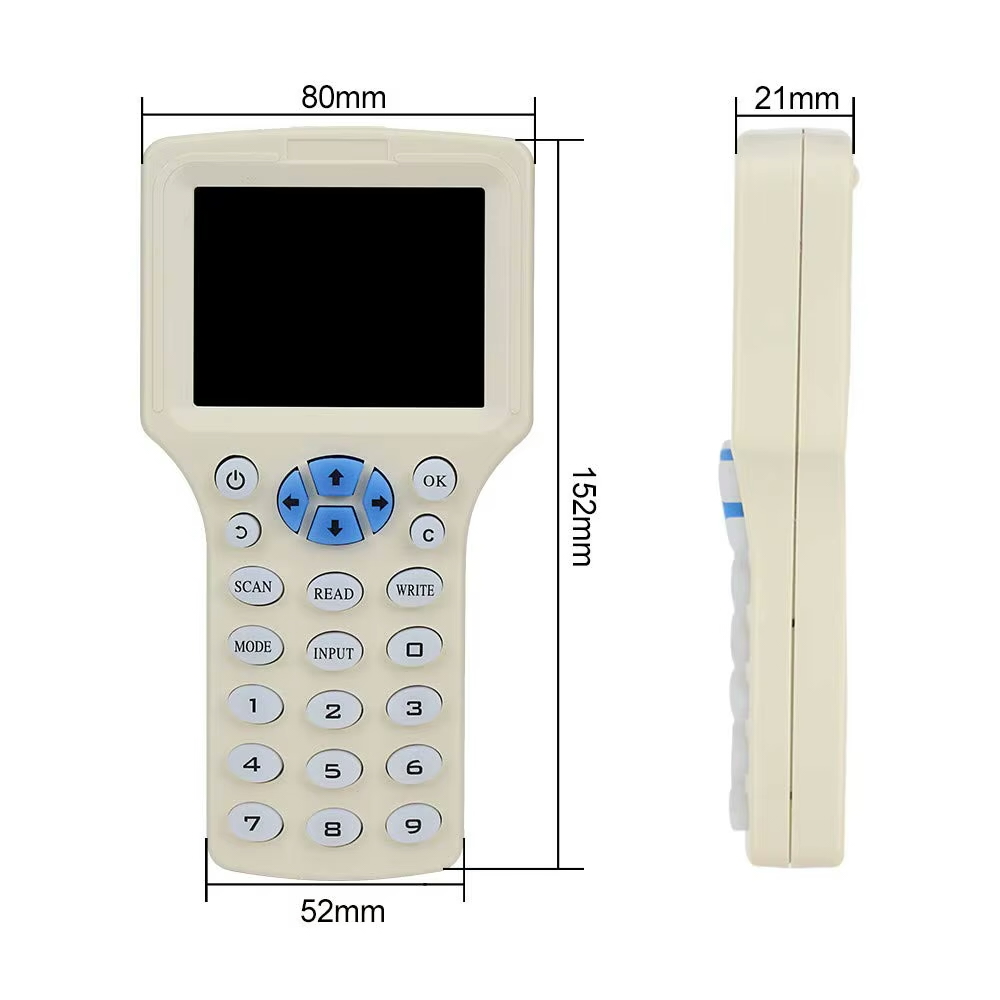

Drawing

This device only supports 125kHz, 250kHz, 375kHz, 500kHz, 625kHz, 750kHz, 875kHz, 1M, HID-125kHz, 13.56MHz (in IC mode) read and copy, supports decryption of most (but not all) IC-encrypted cards, doesn't support copying of CUID and FUID chip cards, and doesn't support cards with a power supply.

13.56MHz card decryption:
Once 13.56MHz cards are encrypted, you need to use software to read the cards.
Connect the copier to your computer via USB cable, press the "on/off" button and the copier will display the "Disclaimer" page.
DO NOT press any button on the copier until the manual and software are available on your computer.
First press the "OK" button on your computer to accept the "Disclaimer" and accept the "Disclaimer" page on the copying device - the connection will be successful.
Place your original cards on the back of the read/write area and press the "scan" button to unlock the passwords, after 2 or 5 minutes the passwords will be unlocked.
Insert one UID card in the read/write area, press the "write" button and that's it.

Copying a 125kHz RFID card:
Press the "on/off" button.
Place the original 125kHz cards on the back of the copier, then the copier will show the "Disclaimer" page.
Press the "ok" button, place the cards on the back of the copier and press "scan", then the copier will automatically identify the cards as 125kHz cards and display the card number.
Then place one EM4305 writeable key on the back of the copier and press "Write".
