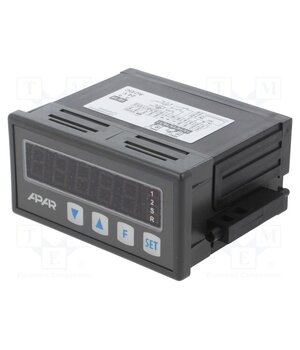

AR715/S2/P/P/WA Counter: electronical; LED; pulses/flow; SPDT; OUT 1: 250VAC/8A

• Operating temperature — 0°C…50°C
• Supply voltage AC — 24V AC
• Supply voltage DC — 24V DC
• Kind of output 3 — 0/4...20mA
• Kind of output 1 — SPDT
• Enclosure material — polycarbonate
• Output 1 electrical parameters — 250V AC / 8A
• Body dimensions — 96x48x79mm
• —
• —
• The additional control inputs — STOP
• Kind of output 2 — SPST-NO
• Kind of input 1 — contact
• Mounting hole diameter — 92x46mm
• The additional control inputs — START
• —
• Type of counter — electronical
• Kind of input 1 — NPN
• Kind of display used — LED
• The additional control inputs — RESET
• Enclosure material — noryl
• Manufacturer — APAR
• Kind of input 1 — PNP
• Type of counted signal — pulses/flow
• Kind of counter — with access lock
• Display parameters — 5 digits
• —
• —
• —
