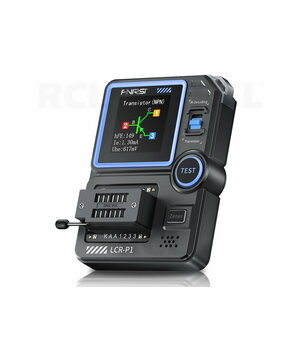

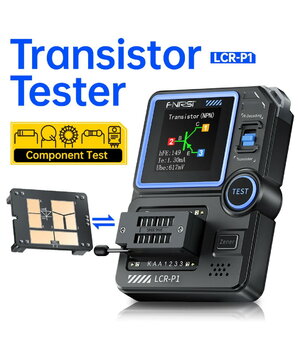

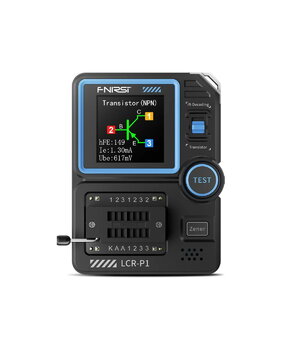

FNIRSI LCR-P1

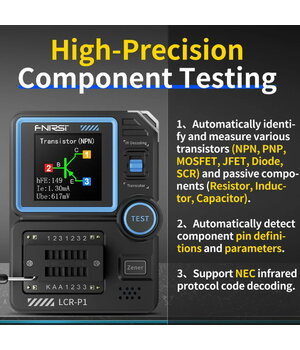

One of the key advantages of this model is its automatic electronic component identification, wide component compatibility, and simple one-button operation. The FNIRSI LCR-P1 is a multifunction component tester capable of automatically identifying transistors, MOSFETs, IGBTs, JFETs, thyristors, TRIACs, resistors, capacitors, inductors, diodes, Zener diodes, and batteries. It also supports NEC infrared remote code analysis, automatic discharge of charged capacitors for protection, and firmware upgrades via USB Type-C. It is an excellent choice for electronics repair, component identification, laboratories, and electronics hobbyists.

Functions

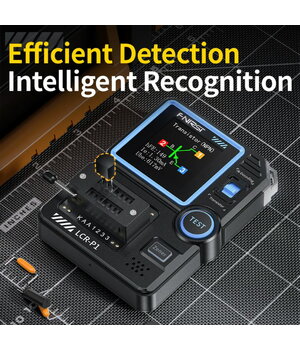

• Automatic electronic component identification
• Measurement of resistors, capacitors, and inductors
• Bipolar transistor (NPN/PNP) parameter measurement
• MOSFET, JFET, and IGBT testing
• Diode and Zener diode measurement
• Thyristor (SCR) and TRIAC testing
• LED testing
• Battery voltage and polarity detection

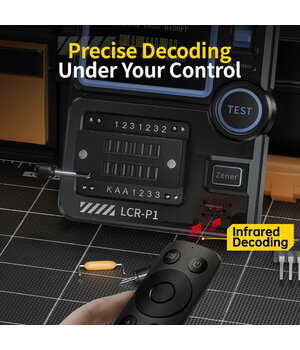

• NEC infrared remote control code analysis
• Automatic component pin identification

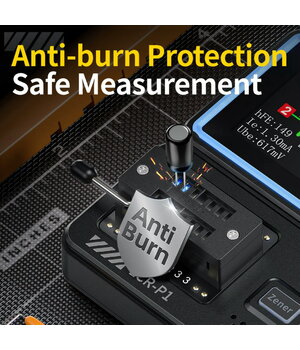

• Automatic discharge of charged capacitors for device protection

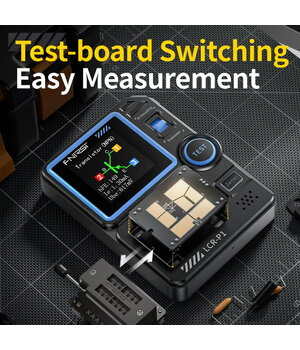

• Replaceable test socket for various component types
• 1.44" color LCD display
• Built-in rechargeable lithium battery
• USB Type-C charging and firmware upgrade

Technical Specifications

• Model: LCR-P1
• Application: Multifunction LCR and semiconductor component tester
• Display: 1.44" color LCD
• Resistance measurement range: 0.01 Ω–50 MΩ
• Capacitance measurement range: 25 pF–100 mF
• Inductance measurement range: 10 μH–1000 H
• Transistor gain (β) measurement: 10–600
• Diode forward voltage measurement: Up to 4.5 V
• Zener diode measurement range:
  • 0.01–4.5 V (standard mode)
  • 0.01–32 V (extended mode)
• Supported components:
  • Resistors
  • Capacitors
  • Inductors
  • NPN and PNP transistors
  • MOSFETs
  • JFETs
  • IGBTs
  • Diodes
  • Zener diodes
  • Thyristors (SCR)
  • TRIACs
  • LEDs
  • Batteries
• Infrared code analysis: NEC protocol
• Battery: 300 mAh lithium
• Charging: USB Type-C (5 V / 1 A)
• Firmware upgrade: Supported
• Operating temperature: 0 °C to +40 °C

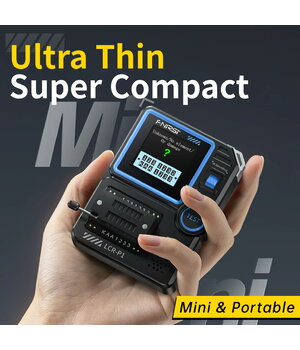

• Dimensions: 71 × 87 × 28 mm

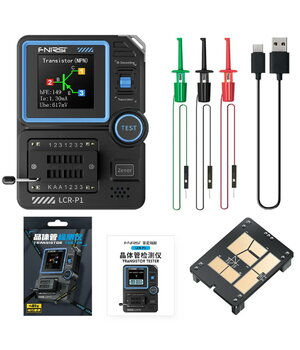

Package Contents

• FNIRSI LCR-P1 Multifunction Component Tester
• Replaceable test socket
• 3 test hooks
• USB Type-C cable
• User manual
• Packaging
