Digital Panel Meter DC 100V 10A without a shunt ATMV02.jpg

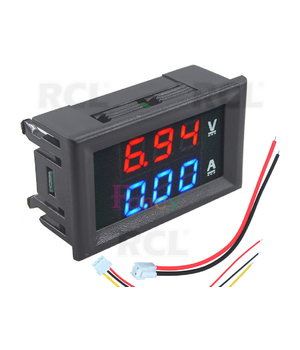

Digital Panel Meter DC 100V 10A without a shunt

Code ATMV02
  • Weight 21.00g

E-shop price: 6,90

Amount: 4+ 8+ 12+
Price: 5,93 4,34 3,73
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (2)
Shop in Kaunas Item is not available (0)

Description

Specifications:
Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
Working current of Meter itself:?20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube, Two color blue and red
Refresh rate: about 300mS / times
Dimensions:48mm29mm26mm
Operation Temp: -10?-+65?

Specification
