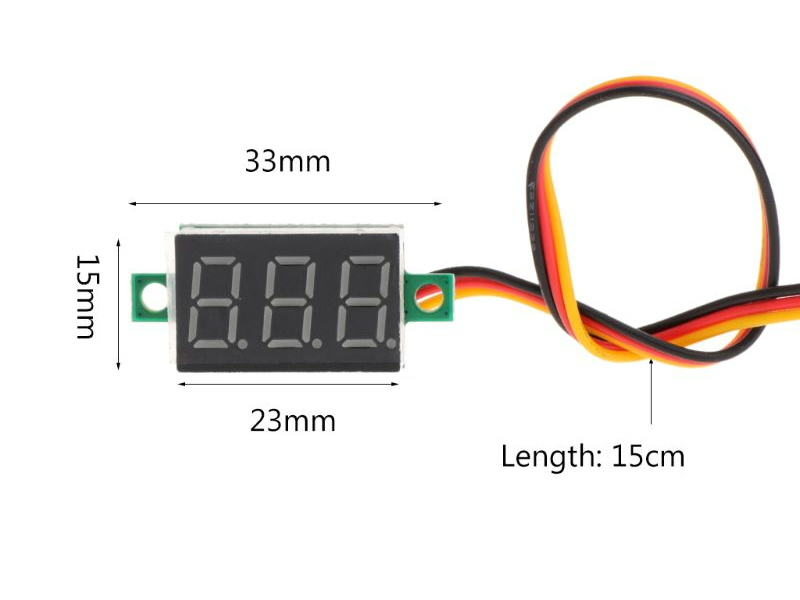

VOLTMETER - MODULE 0.36" LED green, DC 0-100V, 3 wires
Code ATMV25Z- Weight 6.00g
E-shop price: 3,90 €
| Amount: | 5+ | 10+ |
| Price: | 3,47 | 3,12 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (6) | |
| Shop in Kaunas | Item available (2) | |
Item description
The module with 0.36 inch LED indicator is thin, small in shape and stable in operation.
Wide measuring range DC 0-100V. It requires an external 4.5-30V DC power supply. Has polarity reversal protection.
Screen resolution is 0.1V
Precautions:
The measuring range of this voltmeter is 0-100V, this voltage is only a measurement signal and it cannot be considered as the working power supply of the voltmeter - an external 4.5-30V DC working power supply is required. If the measured voltage does not exceed 30V DC, the voltmeter can be powered and the measured voltage (2-wire connection diagram)
The black wire is connected to the negative pole, the white wire is connected to the positive pole of the voltage measurement, the red wire is connected to the positive pole of the working power supply, the measuring circuit and the negative pole of the power supply circuit are common.
The working supply voltage of the voltmeter is 4.5-30V, 30V is the maximum limit supply voltage of the voltmeter, do not use the limit value when working to avoid the possible damage of the voltmeter due to electric spark, power pulsation or other too sudden voltage change.
The voltmeter is not resistant to high humidity, water, shocks or chemicals.
Features:
Supply voltage: DC 4.5-30V
Measuring range: DC 0-100V
Display: Triple 0.36 inch LED indicator
Measurement update frequency: about 200 mS/cycle
Accuracy: 1% (+/- 1 digit)
Operating temperature: -10 ～ +80°
Display color: green
